802.16t - The New Standard for Next-Generation HOT-EOT Communications
The Association of American Railroads (AAR) has taken a pivotal step toward modernizing freight rail operations by selecting the IEEE 802.16t ("dot16") protocol as the new communications standard for the Next-Generation Head-of-Train and End-of-Train (NGHE) program. This decision marks a significant advancement for the North American rail industry, addressing longstanding challenges in maintaining reliable, secure, and efficient wireless communications across increasingly longer and more complex train operations.
​
Led by the AAR’s Railroad Electronic Standards Committee (RESC), the NGHE program is intended to deliver a broad array operational and safety benefits to the railroads such as:
​​​​​
-
Enabling future train control operations such as Vital PTC, train integrity monitoring, and full moving block
​
-
Significant improvements in radio performance to enable highly reliable communications required for longer train operations
​
-
Optimization of existing radio spectrum to enable railroads to run multiple applications – including NGHE – over the same channels
​
-
Enhancements to communication security to prevent spoofing of over-the-air data and other vulnerabilities
​
-
Facilitating new efficiencies to operations such as single person arming and testing of NGHE equipment
How IEEE 802.16t Technology is Powering Safer, Smarter, and Longer Freight Trains
​​​​
Built to support longer train operations, advanced safety features, and future train control applications, the NGHE system delivers highly reliable communication between locomotives and end-of-train devices. Enhanced with Direct Peer-to-Peer (DPP) capabilities, the 802.16t standard enables rail operators the ability to seamlessly migrate to NGHE technology utilizing existing spectrum assets.

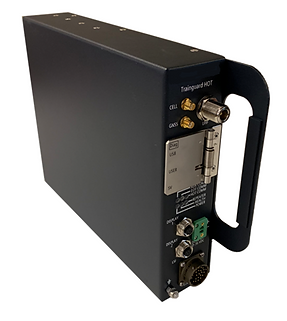

HOT
(Head of Train)​​​​
Monitors brake pressure, speed, and communications with EOT.
EOT
(End of Train)​​​​
Measures brake pressure, detects train separation, and enables emergency braking.
Back Office
Communications Link
Provides real-time tracking and monitoring of HOT and EOT assets from dispatching centers.
Distributed Power
Integration​​​​
Mid-train units sync with HOT over 802.16t for consistent control of in-train forces.
HOT-EOT
Communications Flow​​
Sophisticated radio modulation scheme and receive signal technology mitigates issues of deep fading with long train operation.

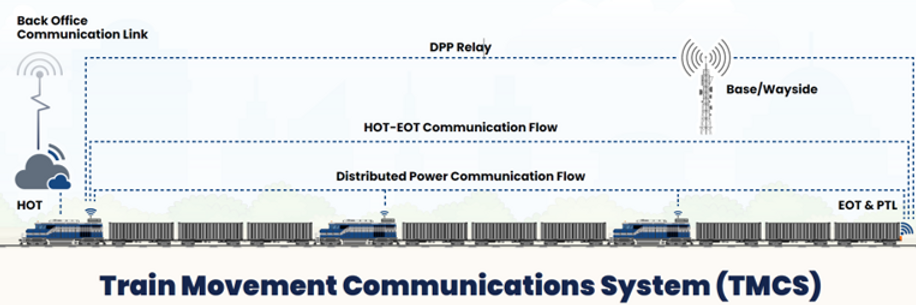

Train Movement Communications System
Enables additional applications such as Distributed Power and Precision Train Location to utilize NGHE network.
Direct Peer-to-Peer (DPP)
802.16t operating mode featuring very low latency selected as AAR standard for NGHE communications.
Precision Train Location (PTL)​
Enables the precise location of the end of train to be communicated to locomotive for future safety applications.
